Optimal site selection

Target fishery of reefs

Artificial reefs for fish: Water depth 15~70m

Artificial reefs for shellfish and algae: Water depth 5~15m

Artificial reefs for marine forest plants: Water depth 1~15m

Subjects and criteria of artificial reefs suitability assessment [Based on Instruction No.86「Regulations on the execution and management of artificial reef projects」 of the Ministry of Oceans and Fisheries]


Subject of investigation Method of investigation Criteria of suitability assessment
Water depth Measured through an echo sounder and MBES

Areas with a water depth below 70m,

where the artificial reefs are safe from collapsing from typhoons and storms

Dissolved oxygen(mg/L) Surface layer and bottom layer measured separately Above 5mg/L
ph " 6.5~8.5
Flow velocity Measured through a hydrometer Maximum flow velocity below 2m/s
Seafloor topography Measured through SSS and MBES Flat sea area with a slope under 5/100
Form of substratum Particle size analysis or investigation on the earth pressure and internal force of the soil, to prevent the artificial reef from collapsing In case the content of muck soil or mud is above 70%, the safety factor is determined based on the geological assessment and the calculation of the earth pressure and internal force caused by stratum and core sediments.

Algae

(Reefs for shellfish, algae, and marine forest plants only)

Investigation of inhabitation of algae

(Quadrat investigation, investigations on photosynthesis rate and quantity of light distribution)

Based on investigation and analysis on photosynthesis rate

quantity of light distribution in algae habitats

Environmental pollution Field confirmation An area free from environmental pollution





Reinforced conditions of the suitability assessment: Extension of investigation items

Biological factors: Distribution, movement, live food of target organism

Physiochemical factors: Water environment of the habitat, physical ocean environmental factors such as the waves and flow of water

Engineering factors: Structure, type, optimal allocation, construction method of the artificial reef

Structure of fishery, utilization status of the fishing ground (Reflect the opinions from fishermen)

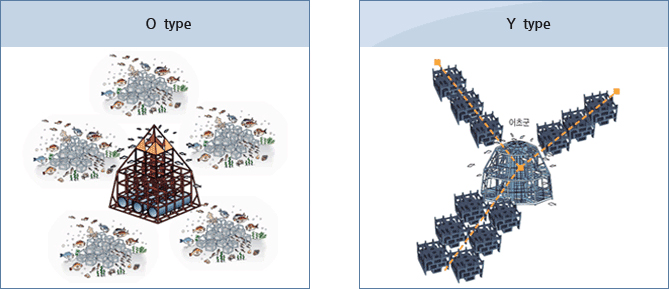

O배치 type Y배치 type
